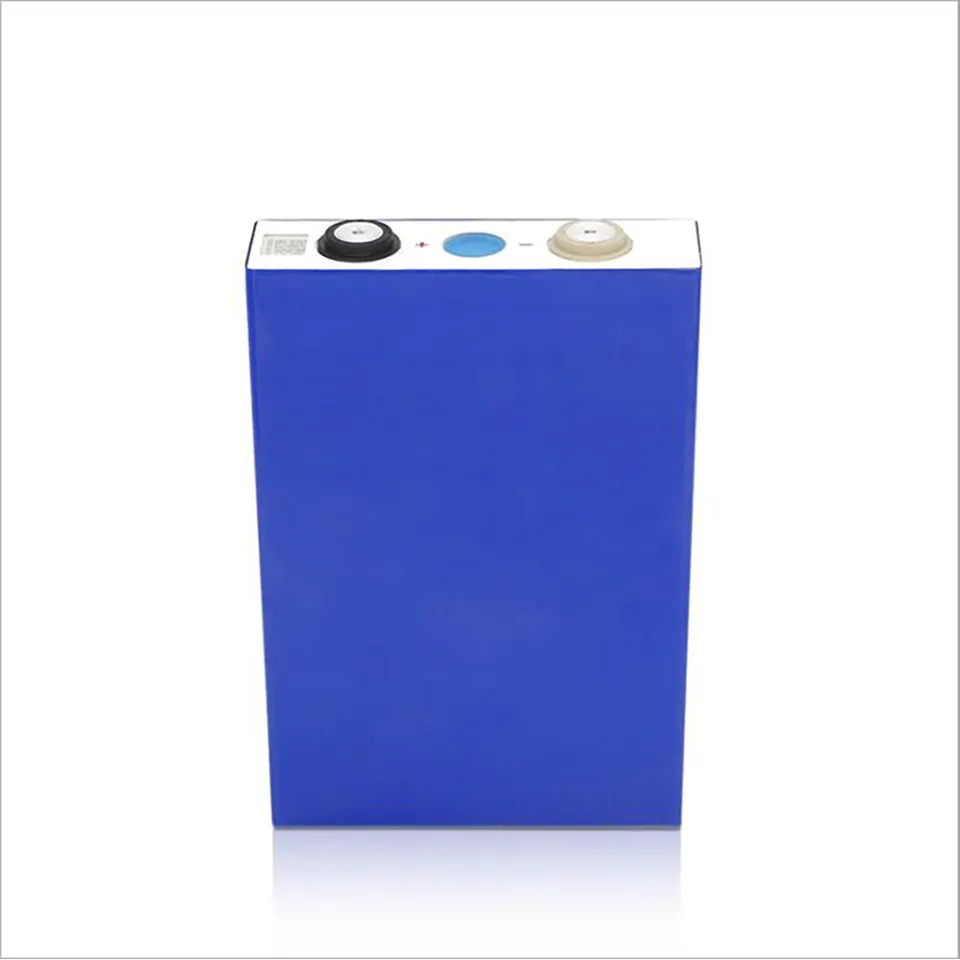

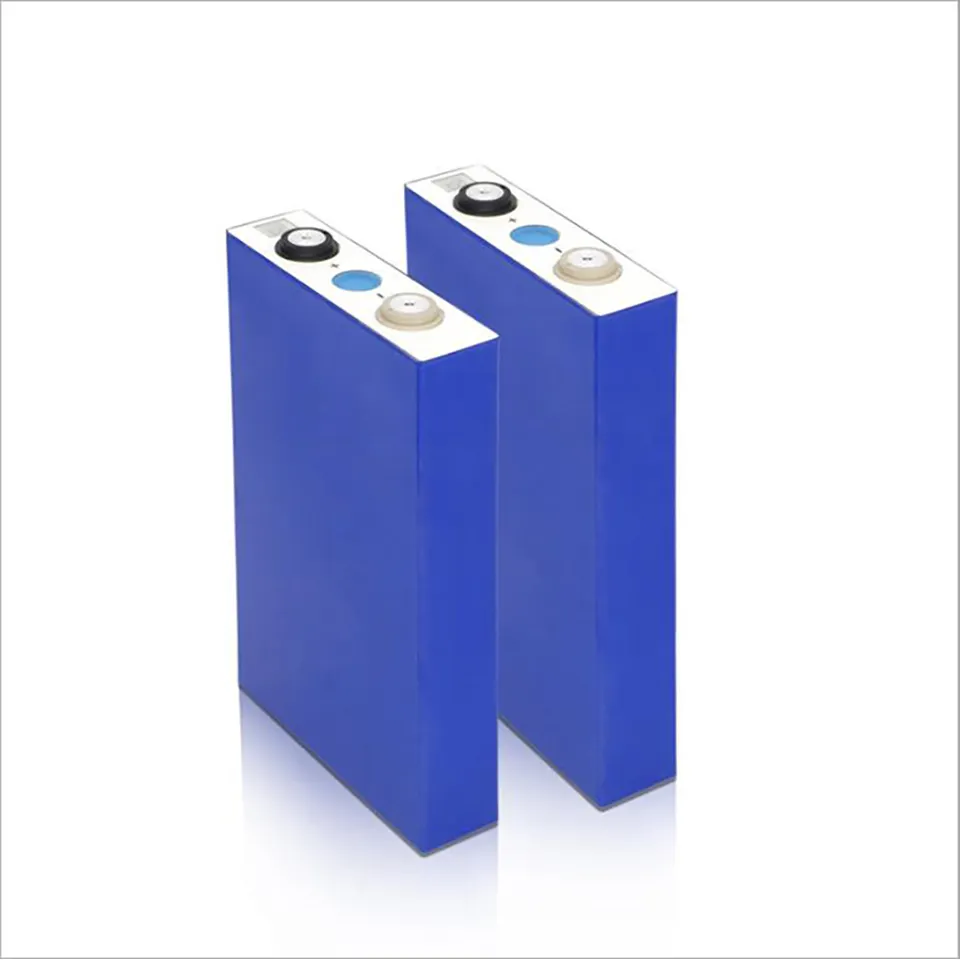

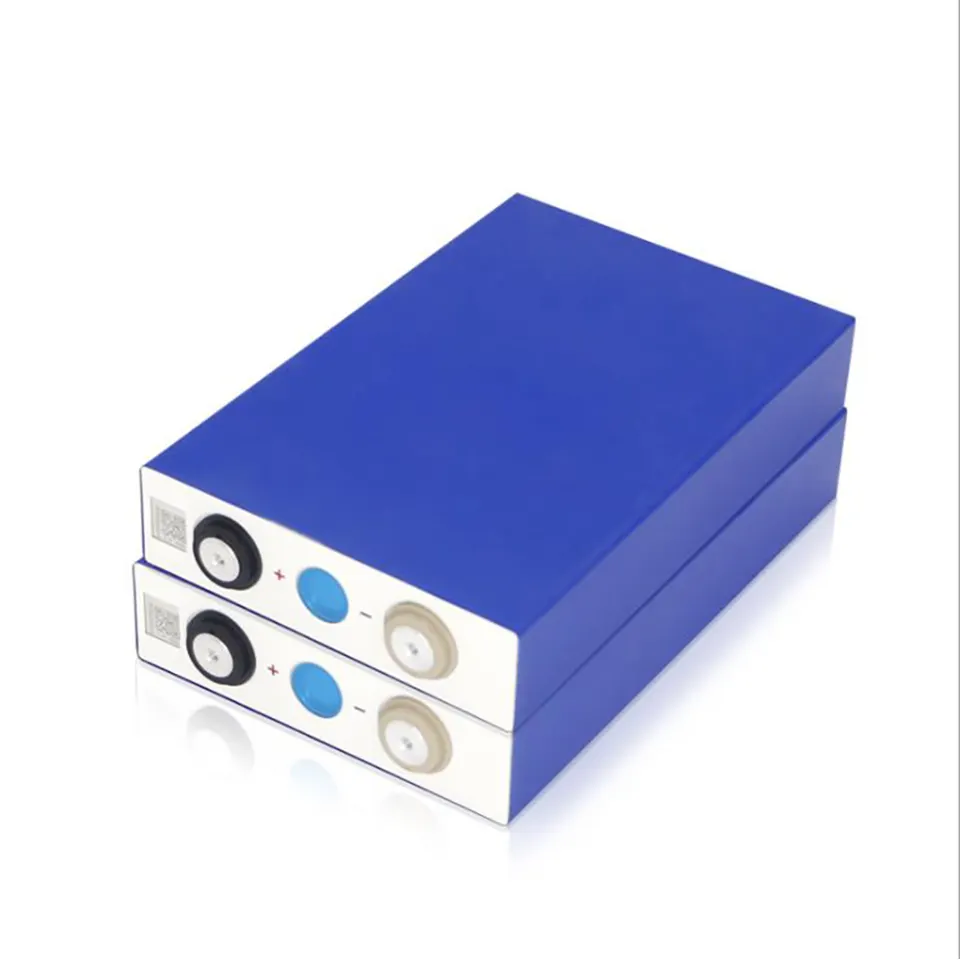

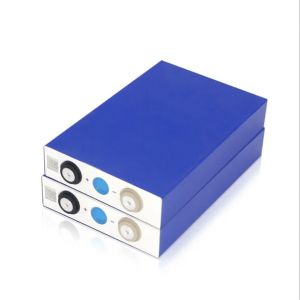

Prismatic Lifepo4 baterija 3.2V 90Ah

2023-06-13 02:44

Specifikacija

#	Predmet			Parametar	Napomena
1	Nominalni kapacitet			90Ah	(25±2)°C, Standard Charge And Discharge
2	Typical Voltage			3.2V
3	AC Impedance Resistance(1KHz)			≤0,5mΩ
4	Standard Charge And Discharge	Charge/Discharge Current		1C/1C	(25±2)°C
		Cut Off Voltage Of Charge/Discharge		3.65V/2.5V
5	Maximum Charge/Discharge Current	Continuous Charge/Discharge		1C/1C	According to continuous/ pulse charge and discharge ammeters
		Pulse Charge/Discharge(30s)		3C/3C
6	Recommended Scope Of SOC			10%~90%	N.A
7	Temperatura punjenja			0°C~55°C	According to continuous/ pulse charge and discharge ammeters
8	Temperatura pražnjenja			-20°C~55°C
9	Temperatura skladištenja		Short Term ( Within 1 month)	-20 ° C ~ 45 ° C	N.A
			Long Term ( Within 1 year)	0 ° C ~ 35 ° C
10	Storage Humidity Range			<95%
11	Self-discharge rate per month			≤3%/month	Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC
12	Dimenzija		Širina	130.3±0.5mm	Refer to Appendix ǀ
13			Thickness( 30% SOC)	36,7 ± 0,5 mm
14			High( Total)	200,5 ± 0,5 mm
15			High（ Subject）	195,5 ± 0,5 mm
16			Tabs Distance	67,0 ± 1,0 mm
17	Težina baterije			1994±50g

Attentions

• It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
• Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
• Do not short connect or install the battery with incorrect polarity at any time.
• Do not mix up with cells from different models or manufacturers.
• Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
• Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
• Please wear protective devices such as rubber gloves when operating the battery.

Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.

Primjena

Naša tvornica

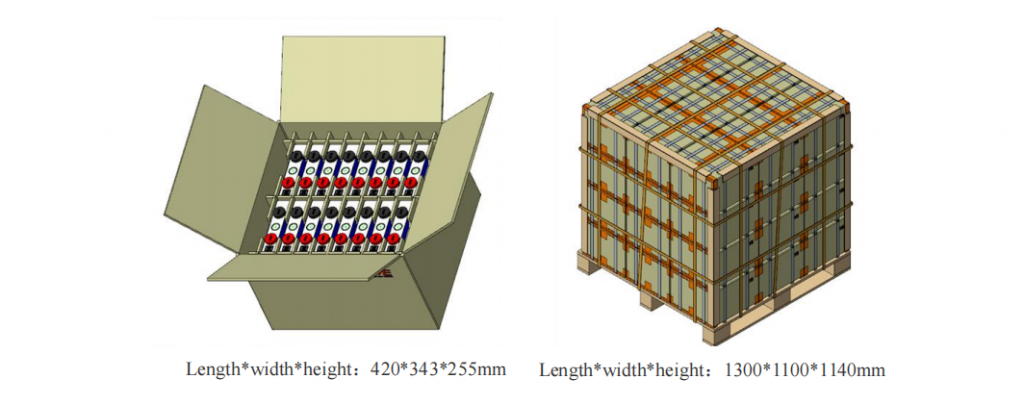

Pakiranje i otprema

The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.

Skladištenje

Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ～ 50%SOC.

FAQ

Q1. Mogu li naručiti uzorak?
SVEDOK JOVANOVIĆ - ODGOVOR: Da, dobrodošli smo uzorak da testiramo i proverimo kvalitet.

Q2. Šta je sa vremenom izvođenja?
A. Uzorak treba 3 dana, vrijeme masovne proizvodnje treba 5-7 tjedana, to ovisi o količini narudžbe.

Q3. Imate li ograničenje MOQ?
SVEDOK JOVANOVIĆ - ODGOVOR: Da, imamo MOQ za masovnu proizvodnju, to zavisi od različitih brojeva delova. Dostupan je uzorak od 1 ~ 10pcs. Dostupan je nizak MOQ, 1pc za provjeru uzoraka.

Q4. Kako isporučujete robu i koliko vremena treba stići?
SVEDOK JOVANOVIĆ - ODGOVOR: Obično treba 5-7 dana da stignu. Avionska i pomorska pošta također nije obavezna.

Q5. Kako postupiti sa nalogom?
SVEDOK ŠEŠELJ - ODGOVOR: Prvo nam obavestite vaše zahteve ili primenu. Drugo, citiramo u skladu s vašim zahtjevima ili našim sugestijama. Tipično kupac potvrđuje uzorke i polaže depozit za formalnu narudžbu. Četvrto sređujemo proizvodnju.

Q6. Je li u redu da odštampam moj logotip na proizvodu?
SVEDOK JOVANOVIĆ - ODGOVOR: Da. Molimo Vas da nas formalno obavijestite prije proizvodnje i prvo potvrdite dizajn na temelju našeg uzorka.

Q7.Koje certifikate imate?
O: Imamo CE / FCC / ROHS / UN38.3 / MSDS ... itd.

Q8.Kako o garanciji?
O: 3 godine garancije
